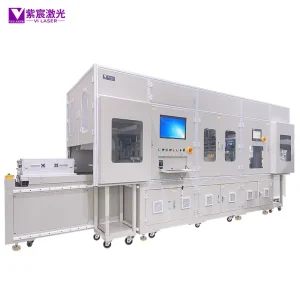

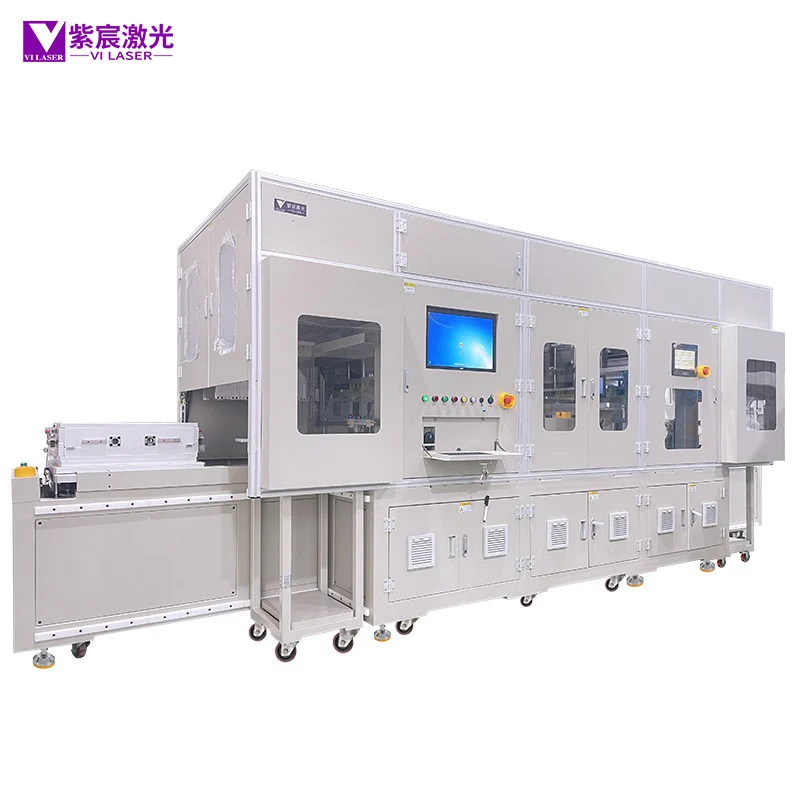

It adopts a front-and-rear interactive feeding workstation design and integrates an automatic laser soldering system, automatic fixture flipping, automatic solder wire feeding, CCD vision positioning, temperature control, and post-soldering inspection, enabling one-time soldering of capacitor pins on both the front and back sides.
Model No.:Non standard customization
Laser power: 100-500W
Laser wavelength: 915nm
Soldering method: Solder wire welding
Cooling method: Full air cooling
Solder wire diameter: 0.5-2.0mm

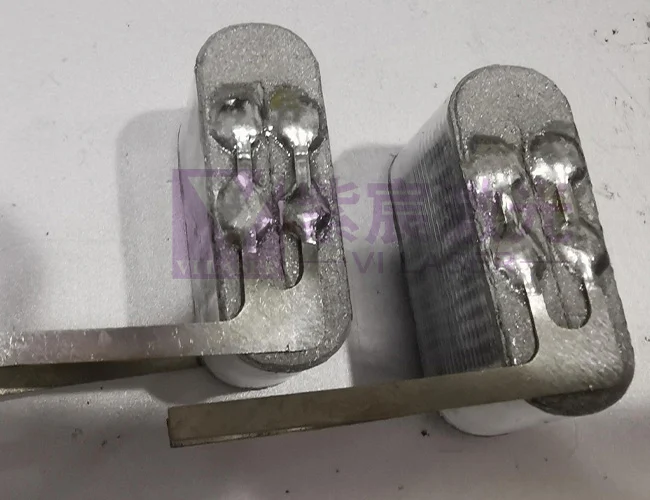

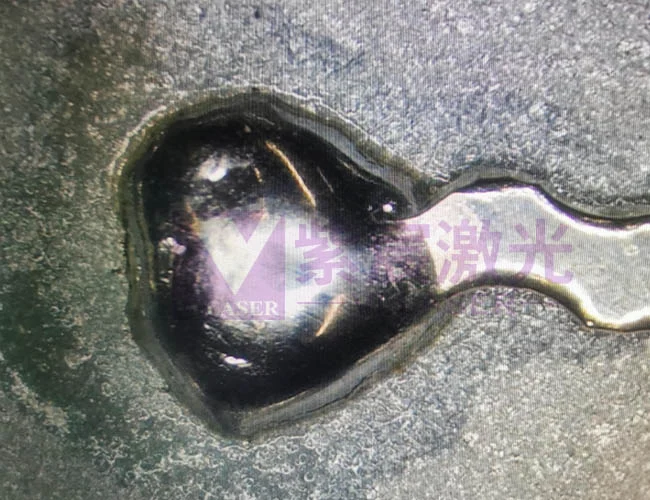

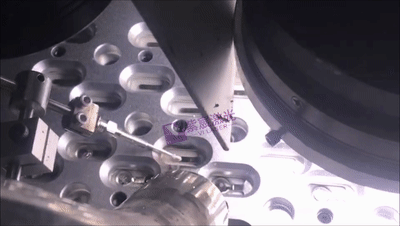

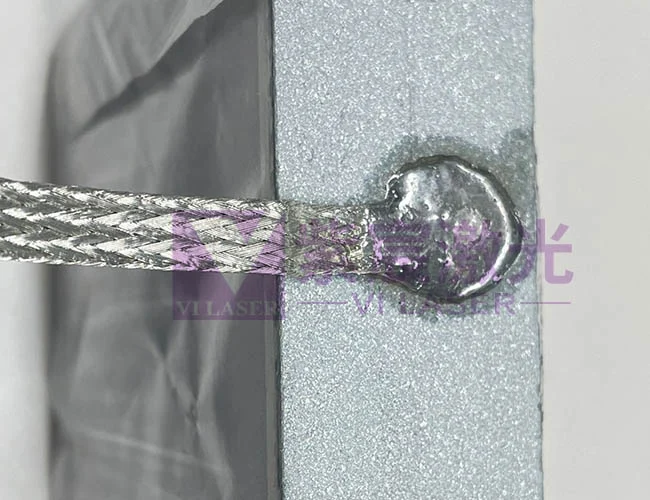

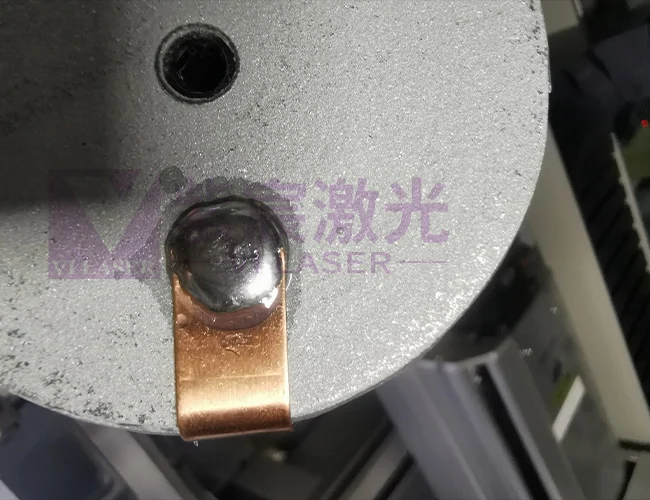

The power capacitor automatic laser soldering machine is specially developed for the solder interconnection of lead terminals, cell leads, copper busbars, and pins in shunt power capacitors, filter capacitors, reactive power compensation capacitors, etc. It adopts a front-and-rear interactive feeding workstation design and integrates an automatic laser soldering system, automatic fixture flipping, automatic solder wire feeding, CCD vision positioning, temperature control, and post-soldering inspection, enabling one-time soldering of capacitor pins on both the front and back sides.

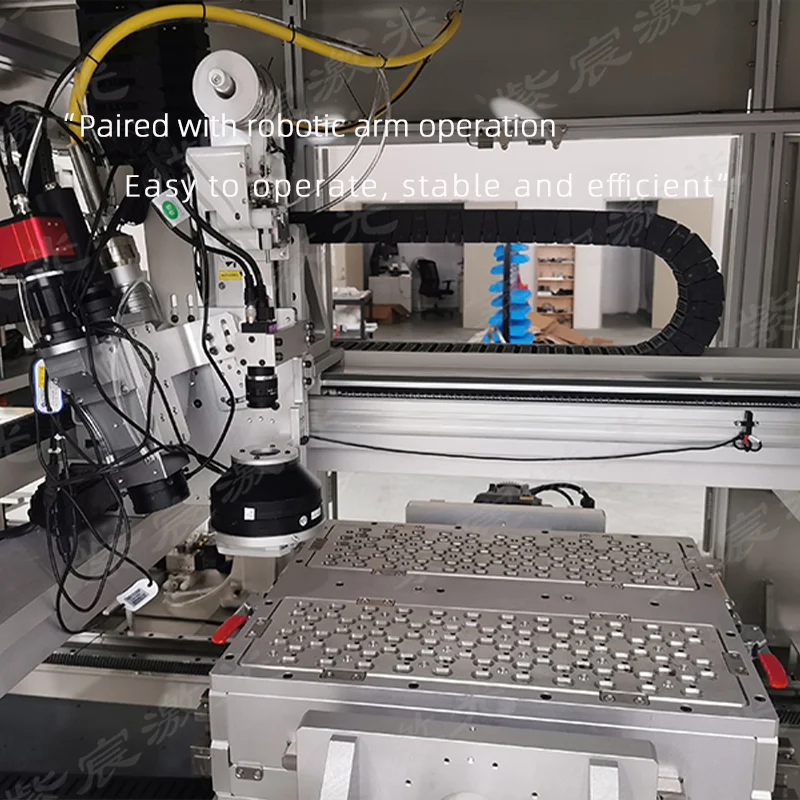

Servo rotary fixture: workpiece clamping and positioning + 180° automatic flipping, with stable positioning and locking to prevent product displacement.
Coaxial CCD vision positioning: automatically identifies capacitor pin coordinates and automatically compensates for deviations, eliminating manual alignment for batch products.
Automatic solder wire feeding and breaking: precise and controllable solder amount, compatible with 0.6–2.5 mm solder wire.
Real-time solder joint temperature acquisition: automatic power reduction/laser stop upon overtemperature to protect the capacitor’s internal film dielectric.
PC + PLC + servo multi-axis coordination: soldering program storage and one-key switching between product models.
Laser safety enclosure, safety light curtain, fume purification unit, audible and visual alarm, and emergency stop protection.
Post-soldering AOI solder joint inspection and production line loading/unloading interface, replacing manual point-by-point inspection and improving inspection efficiency.
