The equipment consists of a laser soldering system, motion and conveying system, rotary worktable, pneumatic solder paste dispensing valve mechanism, CCD vision positioning, temperature feedback control system, AOI visual inspection system, etc.
Model No.: VG820RT
Laser power: 50-100W
Laser wavelength: 915nm / 976nm
Soldering method: Solder Paste welding
Cooling method: Full air cooling
Soldering Precision: ≥0.2mm

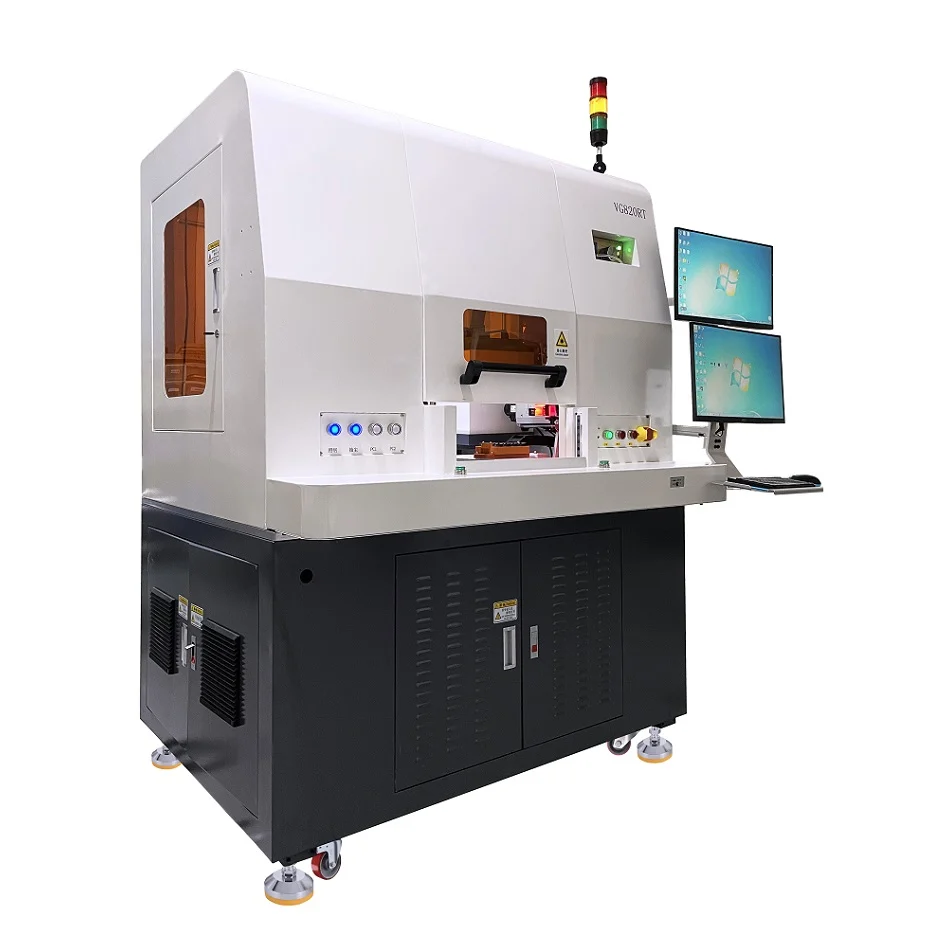

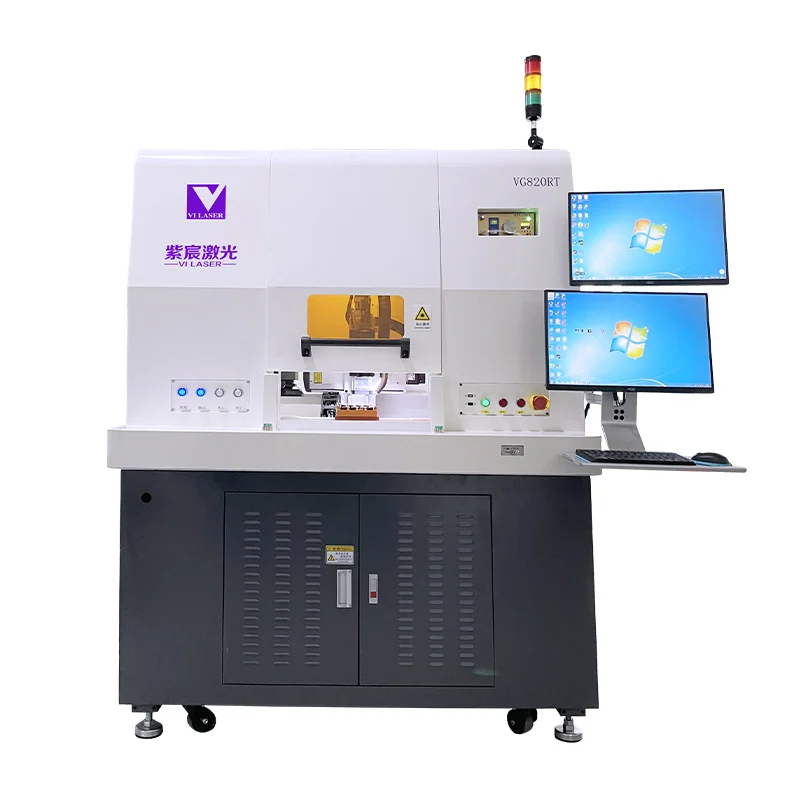

This is a soldering equipment that integrates automatic solder paste dispensing, automatic laser soldering, and automatic post-soldering inspection. It has been upgraded from a rotary 4-station worktable. Its AOI visual inspection function is set at the post-soldering process, replacing manual visual inspection with industrial camera algorithms, further ensuring the pass rate of the processed products.

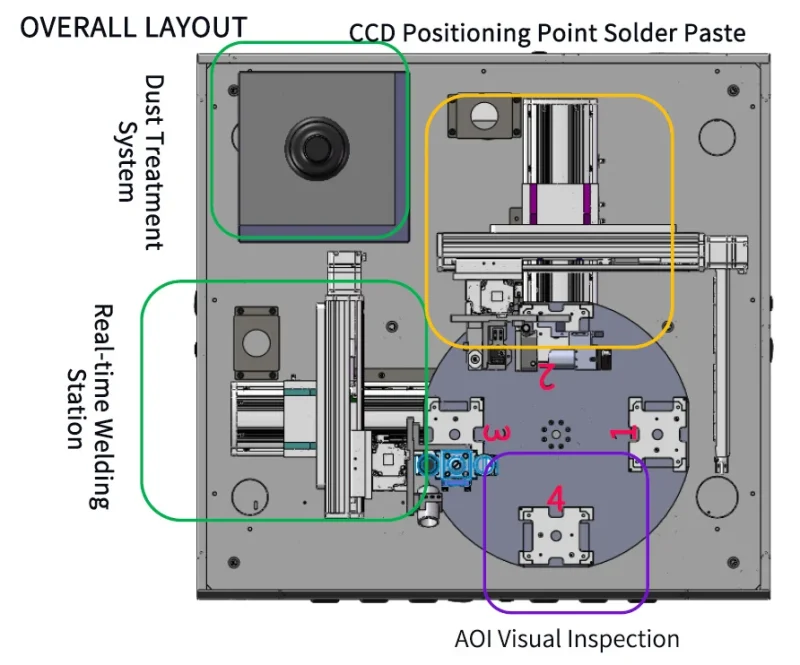

The equipment consists of a laser soldering system, motion and conveying system, rotary worktable, pneumatic solder paste dispensing valve mechanism, CCD vision positioning, temperature feedback control system, AOI visual inspection system, etc. It features an intelligent human-machine operation interface, simple operation, higher soldering precision, faster efficiency, and a soldering yield of over 99.8%, providing assurance for customers’ automated product line upgrades.
Rotary 4-station parallel operation, with efficiency increased by more than 40%;
Spot size up to 0.1 mm, suitable for soldering tiny precision components;
Simple processing program setup, Chinese interface (customizable language), easy to operate;
Laser, CCD, and temperature measurement in a three-point coaxial configuration, avoiding complex debugging;
Real-time temperature control feedback, precise temperature control of ±5°C, eliminating burns;
Post-soldering AOI inspection, enabling defect detection after solder paste dispensing and after soldering.
