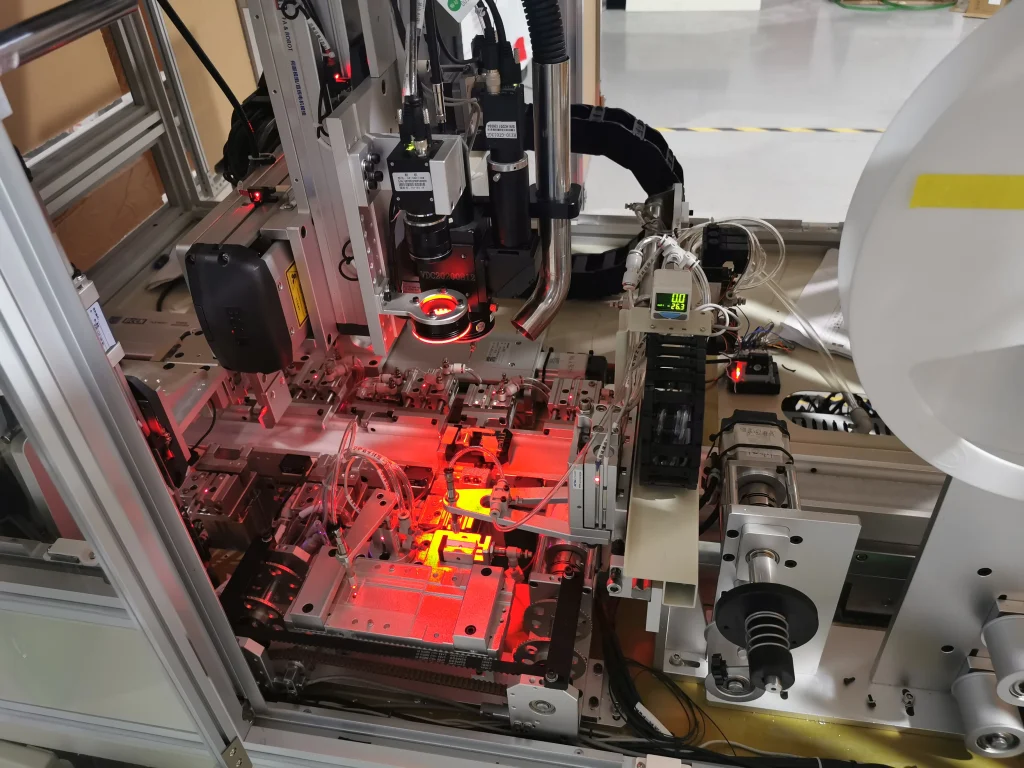

By using automatic robots to match laser welding systems, coupled with temperature feedback systems and CCD coaxial welding monitoring, high efficiency, precision, stability, and high-quality production can be achieved; At the same time, it can achieve automated access to traditional production lines and achieve a production volume of several to ten skilled workers.
Model No.: Non-standard customization
Laser power: 50-500W (Optional）
Laser wavelength: 915nm / 976nm / 1064nm (Optional）
Soldering method: Solder wire, paste, ball, and ring welding (Optional）
Cooling method: Full air cooling/Water cooling
Welding precision: ≥0.05mm
By using automatic robots to match laser welding systems, coupled with temperature feedback systems and CCD coaxial welding monitoring, high efficiency, precision, stability, and high-quality production can be achieved; At the same time, it can achieve automated access to traditional production lines and achieve a production volume of several to ten skilled workers.
High yield, effectively reducing production costs, high stability, and high reliability;
High quality, high yield production, with a yield rate greater than 99%;
Customized according to customer needs, easy to operate, and convenient to cooperate with automatic production lines;
Using visual positioning welding devices;
The machining program is simple to set and easy to operate;
CCD imaging dynamic monitoring, observing the processing process.
The enameled wire laser stripping and soldering all-in-one machine integrates a precision laser enamel stripping unit and a laser soldering unit, completing the entire process of enameled wire insulation film stripping, cleaning, and solder forming in one station.
The power capacitor automatic laser soldering machine is specially developed for the solder interconnection of lead terminals, cell leads, copper busbars, and pins in shunt power capacitors, filter capacitors, reactive power compensation capacitors, etc.
This equipment is an automated laser welding equipment designed for the motor industry, It is widely used in motor soldering applications such as household appliance motors, brushless motors, and drones.

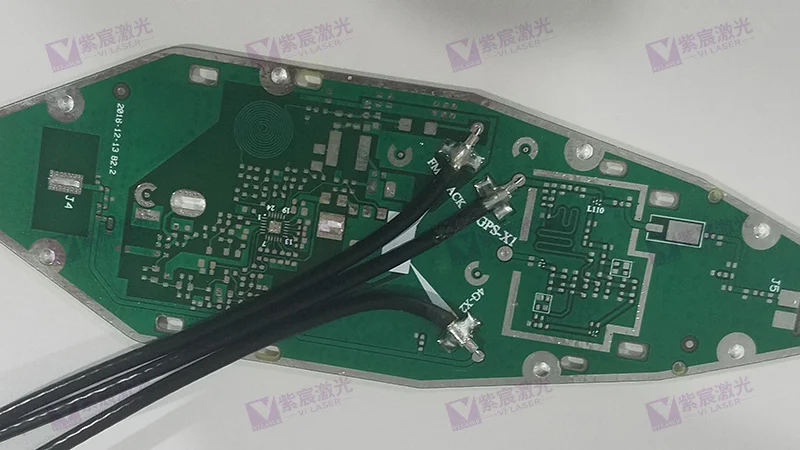

It is specially developed for precision interconnection soldering between PCB circuit boards and electronic wires. It is also an efficient and rapid automated device for soldering circuit boards and electronic wires.

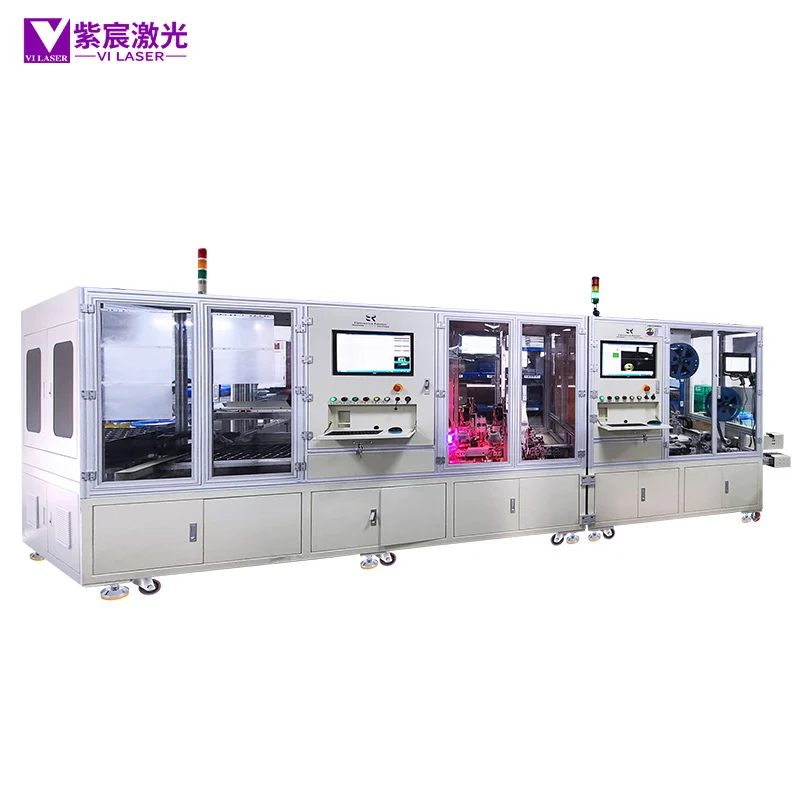

The fully automatic laser soldering machine features a multi-station assembly line design and adopts a high-precision manipulator, CCD vision positioning, and temperature control.
The automatic inline laser soldering equipment is a precision automated soldering system designed for optical device/optical module packaging production lines.
VG820RT Laser Solder Paste Welding Machine is a soldering equipment that integrates automatic solder paste dispensing, automatic laser soldering, and automatic post-soldering inspection. It has been upgraded from a rotary 4-station worktable.
The 3D Inspection System is mainly applied in PCB, FPC, semiconductor packaging and precision electronics manufacturing sectors for dimension measurement, topography analysis and defect inspection.
The Finished Board Automatic Double-Sided Laser Marking Machine is an automated equipment specially designed to engrave barcodes, QR codes, characters and other information on the surface of finished PCB boards to realize full-process intelligent product traceability.
Adopting non-contact laser engraving, the machine can mark barcodes, QR codes, characters and other information on the surface of copper clad laminate (CCL) substrates to realize full-process intelligent product traceability.
