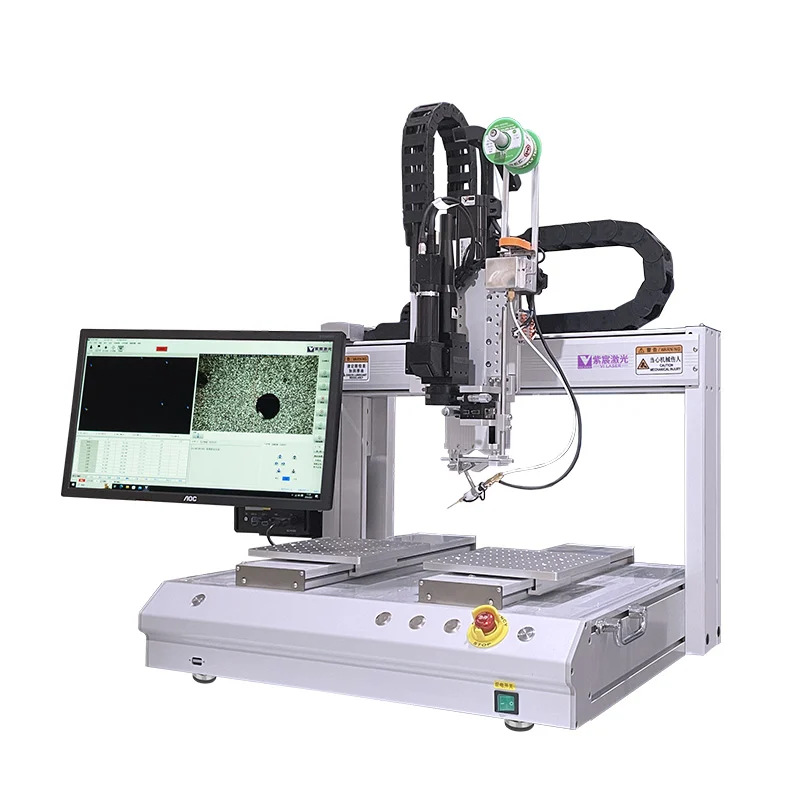

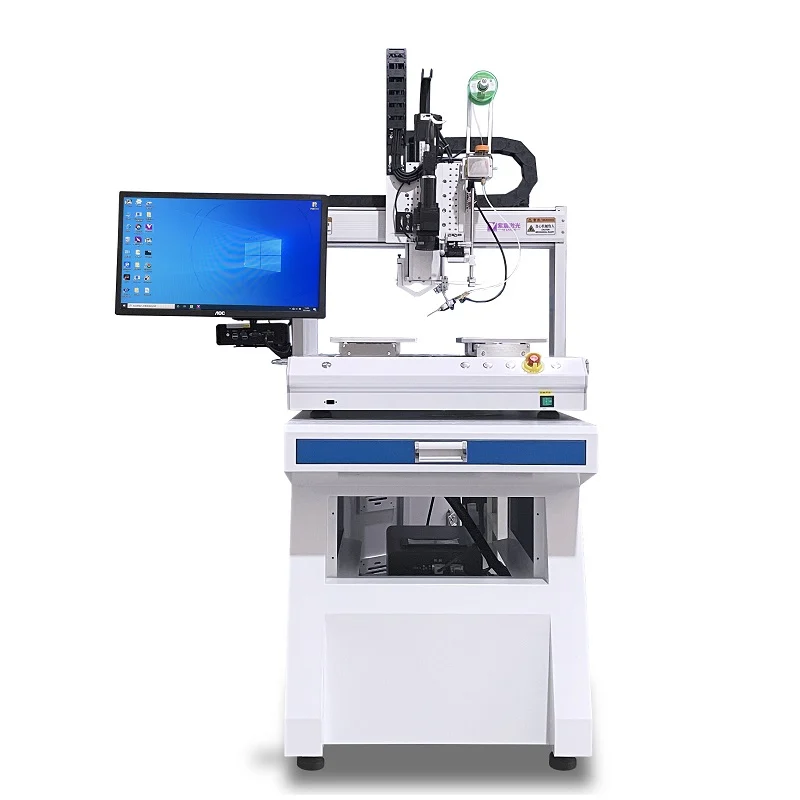

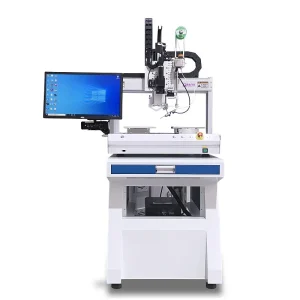

Desktop Dual-Station Laser Solder Paste Welding Machine

VI LASER desktop soldering machine adopts a dual-station reciprocating feeding operation mode, ensuring smooth continuous operation. Two fixtures alternately reciprocate into the soldering area inside the worktable, enabling a simultaneous process of automatic solder wire feeding and laser soldering. Production efficiency is increased by more than 40%. It is suitable for mass production in small and medium-sized enterprises.

It offers high cost-effectiveness, simple operation, and a desktop design for easy movement. It is composed of a semiconductor laser soldering system, coaxial CCD vision system, precision solder wire feeding mechanism, dual-station soldering platform, motion system, and electrical system, etc. It is feature-rich, with optional functions such as a placement worktable, laser fume purifier, and height measurement.

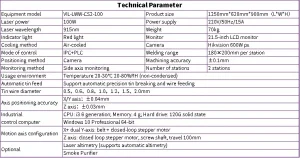

Technical Specifications

Equipment Features

• Lightweight desktop structure, easy to install, and with a minimal footprint;

• Dual-station alternating operation, enabling loading/unloading and soldering to be performed simultaneously;

• Small laser soldering heat-affected zone, with no substrate burning, deformation, or cracking;

• Automatic vision alignment, automatically compensating for product placement deviation, with no complex fixture adjustment required;

• Supports multiple processes such as single-point soldering, array soldering, and terminal lap soldering;

• Simple and easy to operate, greatly reducing dependence on manual labor;

• Stable equipment operation, no easily worn consumables, and low later-stage operation and maintenance costs.
